1 / 4Piston Kit
labwork Cylinder Piston Rebuild Kit fits 4 Suzuki models 2000-2015
$474.99
Free delivery on every order
- Not sure it fits your bike? We'll check before you buy. It's free.
- Free delivery on every order.
- Fast dispatch. Delivered anywhere in New Zealand.
- Consumer Guarantees Act cover. Faulty, damaged or not as described? We repair, replace or refund, and return shipping is on us.
Description

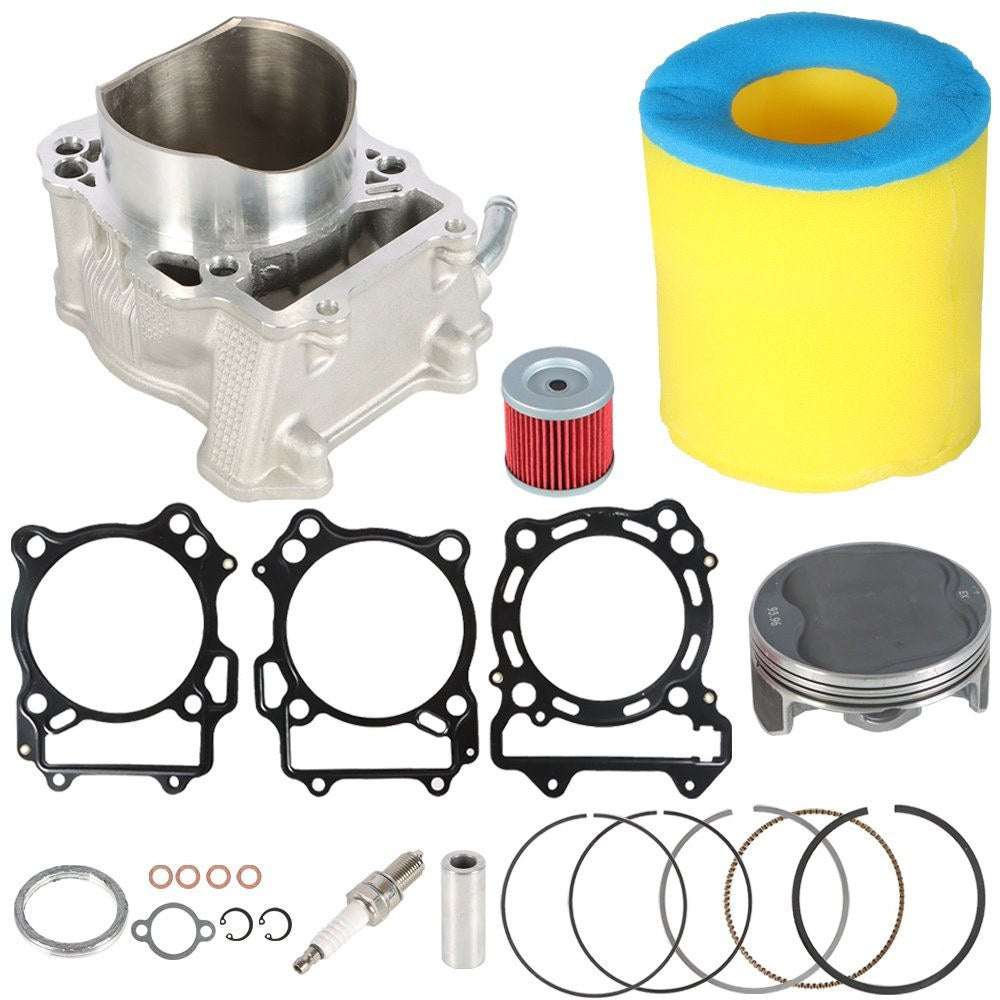

Labwork cylinder piston rebuild kit for 4 Suzuki models 2000-2015, including the DRZ400S, DRZ400 and DRZ400E. Check it against your old part: bore 94.00mm, compression 12.3:1. In the box: base gasket, chain tensioner gasket, cylinder, exhaust gasket, piston rings, piston and wristpin. Find your bike in the fitment table below.
| Part type | Piston Kit |
|---|---|
| Material | metal |
| Colour | silver |
| Cross-reference | 12151-24F10, 09381-20004, 11141-29F01 |
| Condition | New |
- Bore: 94.00mm
- Compression: 12.3:1
- Kit contents: Base Gasket, Chain Tensioner Gasket, Circlips (2), Cylinder, Exhaust Gasket, Head Gasket #1, Head Gasket #2, Piston Rings, Piston, Washers (4), Wristpin
Fitment 6 bikes
| Make | Model | Years |
|---|---|---|
| Suzuki | DRZ400S | 2000-2009 |
| Suzuki | DRZ400 | 2000-2004 |
| Suzuki | DRZ400E | 2000-2007 |
| Suzuki | DRZ400S | 2011-2015 |
| Suzuki | DRZ400SM | 2005-2009 |
| Suzuki | DRZ400SM | 2013-2015 |
Don't see your bike? Ask us to check it fits
