1 / 4Brake Disc

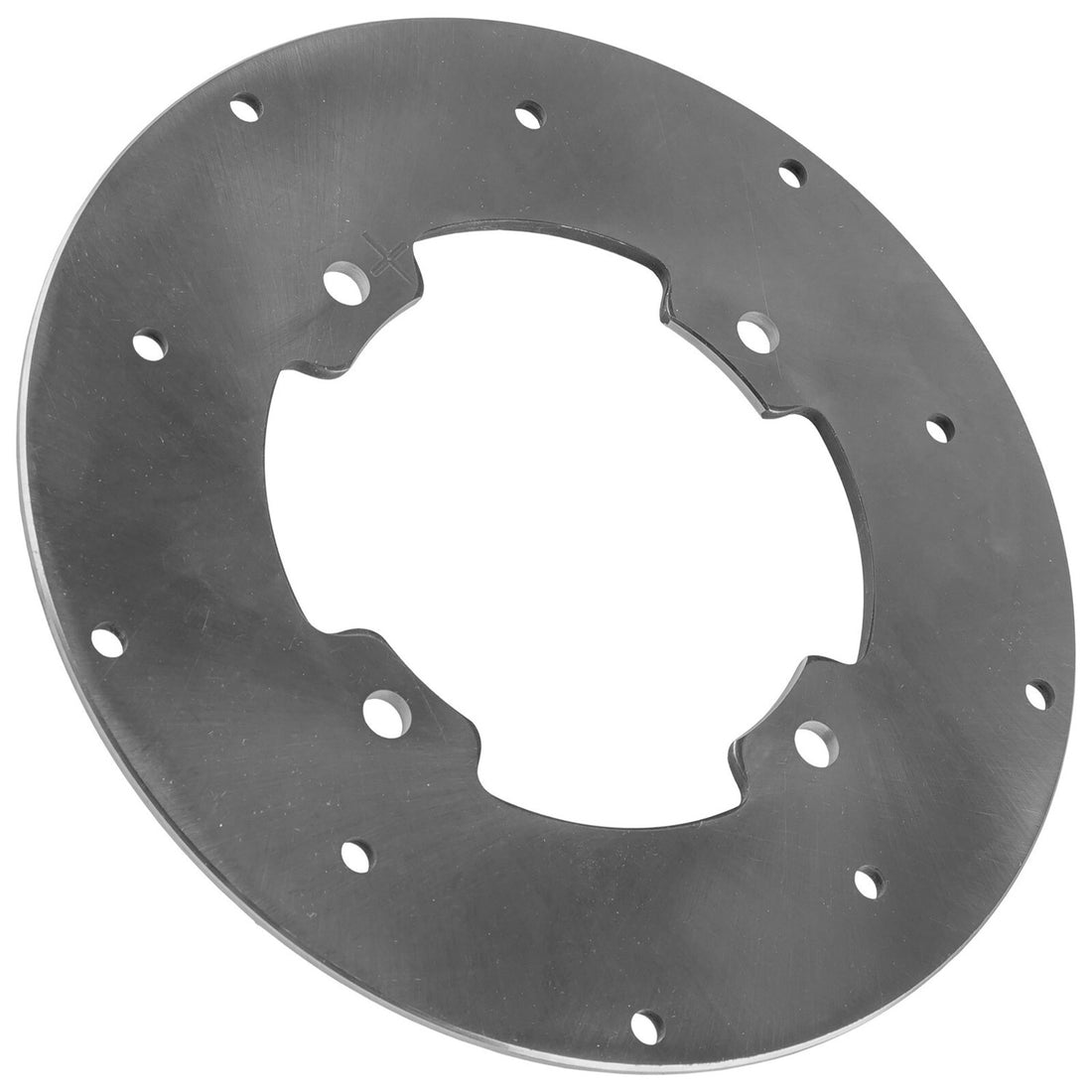

Caltric Brake Disc fits 95 Arctic Cat models 2012-2022 | DS174AA1006
$264.99
Free delivery on every order
- Not sure it fits your bike? We'll check before you buy. It's free.
- Free delivery on every order.
- Fast dispatch. Delivered anywhere in New Zealand.
- Consumer Guarantees Act cover. Faulty, damaged or not as described? We repair, replace or refund, and return shipping is on us.
Description
Caltric brake disc for 95 Arctic Cat models 2012-2022, including the 500 4X4, 1000 4x4 GT EFI and 1000 4x4 TRV Limited. The drilled face helps shed heat and water. Check it against your old part: outside diameter 203 mm, inside diameter 95 mm, thickness 4 mm, bolt circle 114 mm. Find your bike in the fitment table below. Cross-check part number DS174AA1006 against the one you're replacing.
| Part type | Brake Disc |
|---|---|
| Material | Steel |
| Colour | Silver |
| Part number | DS174AA1006 |
| Condition | New |
- Outside diameter: 203 mm
- Inside diameter: 95 mm
- Thickness: 4 mm
- Bolt circle: 114 mm
- Face pattern: Drilled
- Weight: 1 lb 9 oz
Fitment 95 bikes
No match in this list. Try part of the model name or code, or ask us to check it fits.
No exact match. Did you mean one of these? Check your model and years carefully, or ask us to check it fits.
| Make | Model | Years |
|---|---|---|
| Arctic Cat | 500 4X4 | 2014-2017 |
| Arctic Cat | 1000 4x4 GT EFI | 2012 |
| Arctic Cat | 1000 4x4 TRV Limited | 2014 |
| Arctic Cat | 1000 4x4 TRV Limited EPS | 2015 |
| Arctic Cat | 1000 4x4 TRV XT EPS | 2015 |
| Arctic Cat | 1000 4x4 XT | 2013-2014 |
| Arctic Cat | 1000 4x4 XT EPS | 2015-2017 |
| Arctic Cat | 400 4X4 | 2014 |
| Arctic Cat | 400 TRV | 2014 |
| Arctic Cat | 400 TRV CR | 2013 |
| Arctic Cat | 450 4X4 | 2012 |
| Arctic Cat | 450 4x4 EFI | 2012 |
| Arctic Cat | 450 4x4 GT EFI | 2012 |
| Arctic Cat | 450 4x4 TRV EFI | 2012 |
| Arctic Cat | 450 4x4 TRV GT EFI | 2012 |
| Arctic Cat | 500 4x4 TRV | 2014-2015 |
| Arctic Cat | 500 4x4 TRV CR | 2013 |
| Arctic Cat | 500 4x4 XT | 2014 |
| Arctic Cat | 550 4X4 | 2014 |
| Arctic Cat | 550 4x4 EFI | 2012 |
| Arctic Cat | 550 4x4 GT EFI | 2012 |
| Arctic Cat | 550 4x4 LTD EFI | 2012 |
| Arctic Cat | 550 4x4 Limited | 2014 |
| Arctic Cat | 550 4x4 TRV Cruiser EFI | 2012 |
| Arctic Cat | 550 4x4 TRV GT EFI | 2012 |
| Arctic Cat | 550 4x4 TRV Limited | 2013-2014 |
| Arctic Cat | 550 4x4 TRV Limited EPS | 2015 |
| Arctic Cat | 550 4x4 TRV XT | 2013-2014 |
| Arctic Cat | 550 4x4 TRV XT EPS | 2015 |
| Arctic Cat | 550 4x4 XT | 2014 |
| Arctic Cat | 700 4x4 EFI | 2012 |
| Arctic Cat | 700 4x4 GT EFI | 2012 |
| Arctic Cat | 700 4x4 LTD EFI | 2012 |
| Arctic Cat | 700 4x4 Limited | 2014 |
| Arctic Cat | 700 4x4 TBX | 2014 |
| Arctic Cat | 700 4x4 TBX EPS | 2015-2016 |
| Arctic Cat | 700 4x4 TBX GT EFI | 2012 |
| Arctic Cat | 700 4x4 TRV Cruiser EFI | 2012 |
| Arctic Cat | 700 4x4 TRV GT EFI | 2012 |
| Arctic Cat | 700 4x4 TRV Limited | 2013-2014 |
| Arctic Cat | 700 4x4 TRV Limited EPS | 2015 |
| Arctic Cat | 700 4x4 TRV SE EPS | 2016 |
| Arctic Cat | 700 4x4 TRV XT | 2013-2014 |
| Arctic Cat | 700 4x4 TRV XT EPS | 2015 |
| Arctic Cat | 700 4x4 XT | 2014 |
| Arctic Cat | Alterra 500 4x4 XT EPS | 2016 |
| Arctic Cat | Alterra 550 4X4 | 2016 |
| Arctic Cat | Alterra 550 4x4 XT EPS Camo | 2016 |
| Arctic Cat | Alterra 570 | 2020 |
| Arctic Cat | Alterra 570 EPS | 2020-2021 |
| Arctic Cat | Alterra 570 EPS SE | 2021 |
| Arctic Cat | Alterra 700 4X4 | 2016-2017 |
| Arctic Cat | Alterra 700 4x4 XT EPS | 2016-2017 |
| Arctic Cat | Alterra 700 4x4 XT EPS Camo | 2016 |
| Arctic Cat | Alterra 700 EPS | 2020-2021 |
| Arctic Cat | Alterra 700 EPS SE | 2021 |
| Arctic Cat | Alterra TBX 700 | 2020 |
| Arctic Cat | Alterra TRV 1000 4x4 XT EPS | 2017 |
| Arctic Cat | Alterra TRV 500 4X4 | 2017 |
| Arctic Cat | Alterra TRV 550 4x4 XT EPS | 2017 |
| Arctic Cat | Alterra TRV 700 | 2020 |
| Arctic Cat | Alterra TRV 700 4x4 XT EPS | 2017 |
| Arctic Cat | Alterra TRV 700 EPS | 2021-2022 |
| Arctic Cat | TBX 700 | 2016-2017 |
| Arctic Cat | TBX 700 EPS | 2017 |
| Arctic Cat | TBX 700 Special Edition | 2016 |
| Arctic Cat | TRV 700 SE | 2016 |
| Arctic Cat | Wildcat 1000 | 2013-2014 |
| Arctic Cat | Wildcat 1000 4x4 EPS | 2015 |
| Arctic Cat | Wildcat 1000 Limited | 2013-2014 |
| Arctic Cat | Wildcat Sport 700 4X4 | 2015-2016 |
| Arctic Cat | Wildcat Sport 700 4x4 Limited EPS | 2015-2017 |
| Arctic Cat | Wildcat Sport 700 4x4 SE EPS | 2017 |
| Arctic Cat | Wildcat Sport 700 4x4 XT | 2015 |
| Arctic Cat | Wildcat Sport 700 4x4 XT EPS | 2016-2017 |
| Arctic Cat | Wildcat Trail 700 4X4 | 2014-2017 |
| Arctic Cat | Wildcat Trail 700 4x4 Limited EPS | 2015-2017 |
| Arctic Cat | Wildcat Trail 700 4x4 SE EPS | 2017 |
| Arctic Cat | Wildcat Trail 700 4x4 SE Hunter Edition EPS | 2016 |
| Arctic Cat | Wildcat Trail 700 4x4 XT | 2014-2015 |
| Arctic Cat | Wildcat Trail 700 4x4 XT EPS | 2016-2017 |
| Arctic Cat | Wildcat X 1000 | 2013-2014 |
| Arctic Cat | Wildcat X 1000 4x4 EPS | 2015-2016 |
| Arctic Cat | Wildcat X 1000 4x4 Limited EPS | 2016 |
| Arctic Cat | Wildcat X 1000 4x4 Special Edition EPS | 2016 |
| Arctic Cat | Wildcat X 1000 Limited | 2014 |
| Arctic Cat | XR 500 4X4 | 2015 |
| Arctic Cat | XR 550 4X4 | 2015 |
| Arctic Cat | XR 550 4x4 Limited EPS | 2015 |
| Arctic Cat | XR 550 4x4 XT EPS | 2015 |
| Arctic Cat | XR 550 4x4 XT EPS Camo | 2015 |
| Arctic Cat | XR 700 4X4 | 2015 |
| Arctic Cat | XR 700 4x4 Limited EPS | 2015 |
| Arctic Cat | XR 700 4x4 XT EPS | 2015 |
| Arctic Cat | XR 700 4x4 XT EPS Camo | 2015 |
Don't see your bike? Ask us to check it fits
