1 / 4Brake Disc
Caltric Brake Disc and Caliper Set fits 136 Can-Am models 2012-2024 | DS153AA2063
$574.99
Free delivery on every order
- Free fit checkWe check before you buy
- Free deliveryOn every order
- Fast dispatchDelivered NZ-wide
- NZ consumer guaranteeRepair, replace or refund
Description

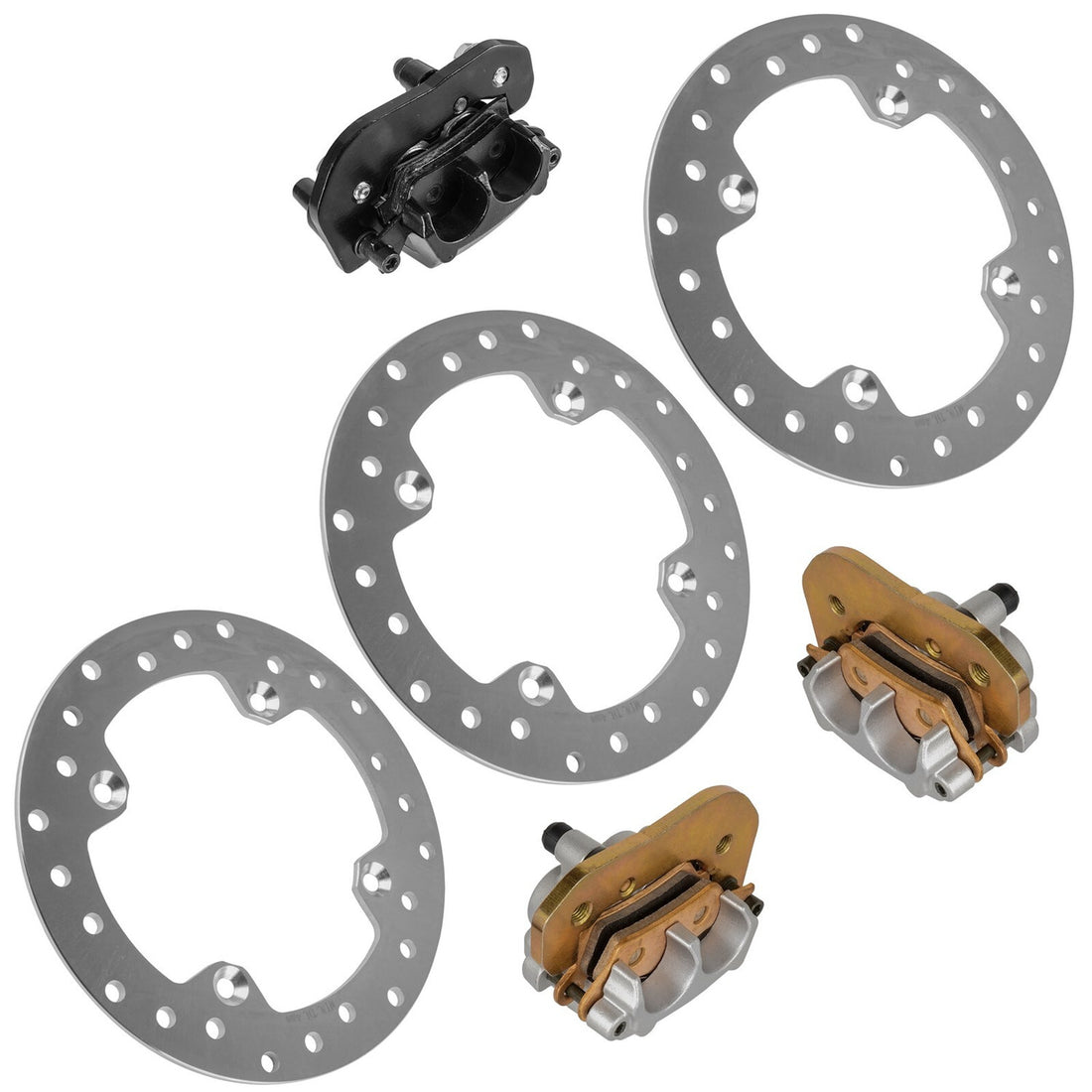

Caltric brake disc and caliper set for 136 Can-Am models 2012-2024, including the Renegade 1000R 4x4 XMR DPS, Outlander 1000 4x4 DPS EFI and Outlander 1000 4x4 EFI. The drilled face helps shed heat and water. Check it against your old part: outside diameter 215 mm, inside diameter 116.2 mm, thickness 4.6 mm, bolt circle 136 mm. Find your bike in the fitment table below. Cross-check part number DS153AA2063 against the one you're replacing.
| Part type | Brake Disc |
|---|---|
| Position | Front / Rear |
| Material | Steel |
| Colour | Silver |
| Part number | DS153AA2063 |
| Condition | New |
- Outside diameter: 215 mm
- Inside diameter: 116.2 mm
- Thickness: 4.6 mm
- Bolt circle: 136 mm
- Face pattern: Drilled
- Weight: 11 lb 10 oz
Fitment 140 bikes
No match in this list. Try part of the model name or code, or ask us to check it fits.
No exact match. Did you mean one of these? Check your model and years carefully, or ask us to check it fits.
| Make | Model | Years |
|---|---|---|
| Can-Am | Renegade 1000R 4x4 XMR DPS | 2016-2024 |
| Can-Am | Outlander 1000 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander 1000 4x4 EFI | 2012 |
| Can-Am | Outlander 1000 4x4 XMR | 2015 |
| Can-Am | Outlander 1000 4x4 XMR EFI | 2013-2014 |
| Can-Am | Outlander 1000 4x4 XT | 2015 |
| Can-Am | Outlander 1000 4x4 XT EFI | 2012-2014 |
| Can-Am | Outlander 1000 4x4 XTP EFI | 2013-2014 |
| Can-Am | Outlander 1000 6x6 XT | 2015-2018 |
| Can-Am | Outlander 1000R 4x4 DPS | 2019 |
| Can-Am | Outlander 1000R 4x4 Mossy Oak Hunting Edition DPS | 2019 |
| Can-Am | Outlander 1000R 4x4 XMR DPS | 2018-2024 |
| Can-Am | Outlander 1000R 4x4 XT DPS | 2019-2023 |
| Can-Am | Outlander 1000R 4x4 XT-P DPS | 2019-2024 |
| Can-Am | Outlander 1000R 4x4 XXC DPS | 2018-2024 |
| Can-Am | Outlander 1000R XMR | 2023 |
| Can-Am | Outlander 1000R XT | 2024 |
| Can-Am | Outlander 450 4X4 | 2018-2023 |
| Can-Am | Outlander 450 4x4 DPS | 2018-2023 |
| Can-Am | Outlander 450 4x4 Mossy Oak Hunting Edition DPS | 2022 |
| Can-Am | Outlander 500 4x4 DPS | 2015 |
| Can-Am | Outlander 500 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander 500 4x4 EFI | 2013-2014 |
| Can-Am | Outlander 500 4x4 XT | 2015 |
| Can-Am | Outlander 500 4x4 XT EFI | 2013-2014 |
| Can-Am | Outlander 570 4X4 | 2018-2023 |
| Can-Am | Outlander 570 4x4 DPS | 2018-2023 |
| Can-Am | Outlander 570 4x4 MR | 2022-2023 |
| Can-Am | Outlander 570 4x4 Mossy Oak Hunting Edition DPS | 2018-2023 |
| Can-Am | Outlander 570 4x4 XMR DPS | 2018-2023 |
| Can-Am | Outlander 570 4x4 XT DPS | 2018-2023 |
| Can-Am | Outlander 650 4X4 | 2015-2022 |
| Can-Am | Outlander 650 4X4 Mossy Oak Hunting Edition | 2020-2022 |
| Can-Am | Outlander 650 4x4 DPS | 2015-2022 |
| Can-Am | Outlander 650 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander 650 4x4 EFI | 2013-2014 |
| Can-Am | Outlander 650 4x4 North Edition DPS | 2018-2019 |
| Can-Am | Outlander 650 4x4 XMR | 2014-2015 |
| Can-Am | Outlander 650 4x4 XMR DPS | 2016-2022 |
| Can-Am | Outlander 650 4x4 XMR EFI | 2013 |
| Can-Am | Outlander 650 4x4 XT | 2015 |
| Can-Am | Outlander 650 4x4 XT Camo DPS | 2016 |
| Can-Am | Outlander 650 4x4 XT DPS | 2016-2022 |
| Can-Am | Outlander 650 4x4 XT EFI | 2013-2014 |
| Can-Am | Outlander 650 6x6 DPS | 2017-2018 |
| Can-Am | Outlander 650 6x6 XT | 2015-2016 |
| Can-Am | Outlander 650 6x6 XT Camo DPS | 2016 |
| Can-Am | Outlander 650 XT-P | 2019 |
| Can-Am | Outlander 800R 4X4 | 2015 |
| Can-Am | Outlander 800R 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander 800R 4x4 EFI | 2012-2014 |
| Can-Am | Outlander 800R 4x4 XMR | 2015 |
| Can-Am | Outlander 800R 4x4 XMR EFI | 2013-2014 |
| Can-Am | Outlander 800R 4x4 XT EFI | 2012-2014 |
| Can-Am | Outlander 800R 4x4 XTP EFI | 2013-2014 |
| Can-Am | Outlander 850 4X4 | 2019-2024 |
| Can-Am | Outlander 850 4x4 DPS | 2018-2024 |
| Can-Am | Outlander 850 4x4 North Edition DPS | 2018-2021 |
| Can-Am | Outlander 850 4x4 XMR DPS | 2018-2024 |
| Can-Am | Outlander 850 4x4 XT DPS | 2018-2024 |
| Can-Am | Outlander 850 4x4 XT-P DPS | 2018-2024 |
| Can-Am | Outlander L 450 4X4 | 2015 |
| Can-Am | Outlander L 450 4x4 DPS | 2015 |
| Can-Am | Outlander L 500 4X4 | 2015 |
| Can-Am | Outlander L 500 4x4 DPS | 2015 |
| Can-Am | Outlander L MAX 450 4X4 | 2015 |
| Can-Am | Outlander L MAX 450 4x4 DPS | 2015 |
| Can-Am | Outlander L MAX 500 4X4 | 2015 |
| Can-Am | Outlander L MAX 500 4x4 DPS | 2015 |
| Can-Am | Outlander Max 1000 4x4 DPS | 2015 |
| Can-Am | Outlander Max 1000 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander Max 1000 4x4 LTD | 2015 |
| Can-Am | Outlander Max 1000 4x4 LTD EFI | 2013-2014 |
| Can-Am | Outlander Max 1000 4x4 XT | 2015 |
| Can-Am | Outlander Max 1000 4x4 XT EFI | 2013-2014 |
| Can-Am | Outlander Max 1000 4x4 XTP | 2015 |
| Can-Am | Outlander Max 1000 4x4 XTP EFI | 2013-2014 |
| Can-Am | Outlander Max 1000 6x6 XT | 2021-2023 |
| Can-Am | Outlander Max 1000 Limited | 2022 |
| Can-Am | Outlander Max 1000 XT-P | 2022 |
| Can-Am | Outlander Max 1000R 4x4 LTD DPS | 2021-2022 |
| Can-Am | Outlander Max 1000R 4x4 LTD DPS | 2024 |
| Can-Am | Outlander Max 1000R 4x4 XT DPS | 2018-2019 |
| Can-Am | Outlander Max 1000R 4x4 XT DPS | 2021-2022 |
| Can-Am | Outlander Max 1000R 4x4 XT DPS | 2024 |
| Can-Am | Outlander Max 1000R 4x4 XTP DPS | 2021-2022 |
| Can-Am | Outlander Max 1000R 6x6 XT | 2024 |
| Can-Am | Outlander Max 1000R XT-P | 2024 |
| Can-Am | Outlander Max 450 4X4 | 2018-2023 |
| Can-Am | Outlander Max 450 4x4 DPS | 2019-2023 |
| Can-Am | Outlander Max 450 6x6 DPS | 2019-2023 |
| Can-Am | Outlander Max 500 4x4 DPS | 2015 |
| Can-Am | Outlander Max 500 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander Max 500 4x4 EFI | 2013-2014 |
| Can-Am | Outlander Max 500 4x4 XT | 2015 |
| Can-Am | Outlander Max 500 4x4 XT EFI | 2013-2014 |
| Can-Am | Outlander Max 570 4X4 | 2018-2023 |
| Can-Am | Outlander Max 570 4x4 DPS | 2018-2023 |
| Can-Am | Outlander Max 570 4x4 XT DPS | 2018-2023 |
| Can-Am | Outlander Max 650 4X4 | 2015 |
| Can-Am | Outlander Max 650 4x4 DPS | 2015 |
| Can-Am | Outlander Max 650 4x4 DPS | 2018-2022 |
| Can-Am | Outlander Max 650 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander Max 650 4x4 EFI | 2013-2014 |
| Can-Am | Outlander Max 650 4x4 North Edition DPS | 2018-2019 |
| Can-Am | Outlander Max 650 4x4 XT | 2015 |
| Can-Am | Outlander Max 650 4x4 XT DPS | 2018-2022 |
| Can-Am | Outlander Max 650 4x4 XT EFI | 2013-2014 |
| Can-Am | Outlander Max 650 6x6 DPS | 2019-2023 |
| Can-Am | Outlander Max 800R 4x4 DPS | 2015 |
| Can-Am | Outlander Max 800R 4x4 DPS EFI | 2013-2014 |
| Can-Am | Outlander Max 800R 4x4 EFI | 2012 |
| Can-Am | Outlander Max 800R 4x4 LTD EFI | 2012 |
| Can-Am | Outlander Max 800R 4x4 XT | 2015 |
| Can-Am | Outlander Max 800R 4x4 XT EFI | 2012-2014 |
| Can-Am | Outlander Max 800R 4x4 XTP | 2015 |
| Can-Am | Outlander Max 800R 4x4 XTP EFI | 2012-2014 |
| Can-Am | Outlander Max 850 4x4 DPS | 2023-2024 |
| Can-Am | Outlander Max 850 4x4 North Edition DPS | 2018-2021 |
| Can-Am | Outlander Max 850 4x4 XT DPS | 2018-2024 |
| Can-Am | Outlander Max 850 4x4 XTP DPS | 2018-2024 |
| Can-Am | Outlander Max 850 XT | 2023 |
| Can-Am | Renegade 1000 4X4 | 2015 |
| Can-Am | Renegade 1000 4x4 EFI | 2012-2014 |
| Can-Am | Renegade 1000 4x4 XXC | 2015 |
| Can-Am | Renegade 1000 4x4 XXC EFI | 2012-2014 |
| Can-Am | Renegade 1000R 4X4 | 2016-2019 |
| Can-Am | Renegade 1000R 4x4 XXC DPS | 2016-2024 |
| Can-Am | Renegade 500 4X4 | 2015 |
| Can-Am | Renegade 500 4x4 EFI | 2013-2014 |
| Can-Am | Renegade 570 4X4 | 2016-2022 |
| Can-Am | Renegade 570 4x4 XMR DPS | 2017-2021 |
| Can-Am | Renegade 650 4X4 | 2023-2024 |
| Can-Am | Renegade 650 4x4 XMR | 2022-2024 |
| Can-Am | Renegade 800R 4X4 | 2015 |
| Can-Am | Renegade 800R 4x4 EFI | 2012-2014 |
| Can-Am | Renegade 800R 4x4 XXC | 2015 |
| Can-Am | Renegade 800R 4x4 XXC EFI | 2012-2014 |
| Can-Am | Renegade 850 4X4 | 2016-2022 |
| Can-Am | Renegade 850 4x4 XXC DPS | 2016-2022 |
Don't see your bike? Ask us to check it fits
