Motorcycle Parts > Tachometer

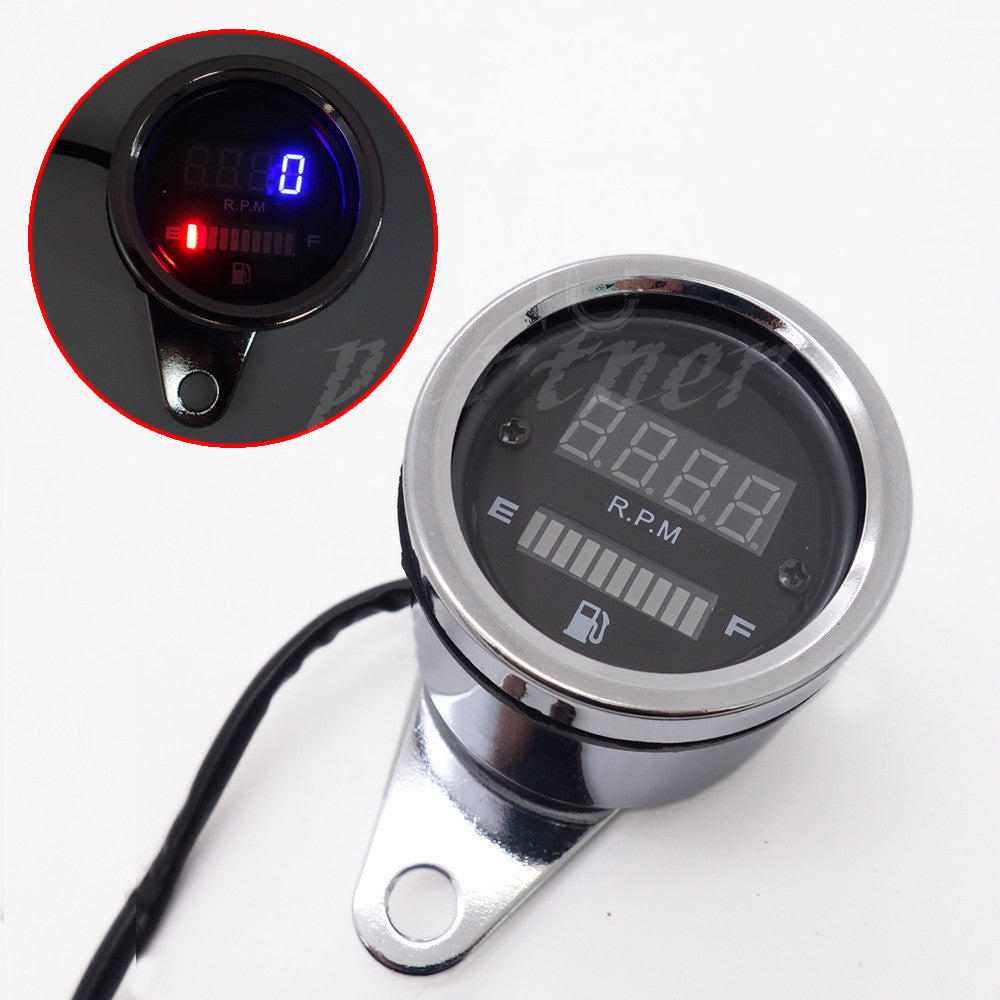

12V Chrome 2 in 1 LED Tachometer Gauge Fuel Oil Digital Motorcycle Gauge Combo
$94.99
incl. GST
- Free tracked shipping, NZ-wide
- Dispatched in 1-3 business days
- Prices include GST
- Fitment support: send your make, model and year
Product details
The wrong part stalls the whole job. Check the details below against your bike before you order: if a spec isn't listed, we don't have it on record, and we'd rather you ask than guess.
Tachometer. Made from chrome, finished in Chrome and Chrome Operating.
| Part type | Tachometer |
|---|---|
| Material | chrome, Metal |
| Colour | Chrome, Chrome Operating |
| Size | Dimension approx 62mm(Diameter)x52mm(Height) |
| Quantity | 1 x 2-in-1 Tachometer and Fuel Gauge |
- Voltage:DC 12V
- Wiring: Red=Positive，Black=Negtive，Green=Tachometer Signal，Yellow=Oil Signal
- Note: The original fuel gauge can not be used together
- Connect the positive and negative pole to power supply correctly
- Turn on the electric door switch, tachometer will display to 0, and then let the signal line touch the positive pole of power supply
- If the digital display changes, it can work normally
- Connect the signal cable, start the Motorcycle, and then it can display speed
- Fuel gauge installation and debugging methods: 1
- Turn on the electric door switch, fuel gauge displays a grid of red, and then connected signal line to the negative pole
- Wait for a while, LED light will all light up slowly, indicating normal operation
- Connect the signal line, fill up, slowly adjust the potentiometer to make all the LED lights on
- When oil runs out, slightly adjust potentiometer so as to make only one red LED light on
Not sure it fits? Send us your make, model and year before you order and we'll check this part against your bike. Endo Supply is Kiwi-owned and orders are processed and fulfilled from New Zealand. If a part ever arrives faulty or not as described, a real person sorts it, backed by your Consumer Guarantees Act rights and our refund policy.
